Showing all 3 results
CoreRange Packages, K28
This CoreMaxx package comes complete with a raw steel 2500mm x 1400mm table, adjustable legs and a whopping 112pc Maxx fixture tooling kit.
The KOWT K28 CoreRange is a functional, industrial setup engineered from the same manufacturing DNA as our K28 Signature Series. The CoreRange pairs a 25mm thick S355 steel plate with a 28mm hole system and full K28 eco-system cross compatibility. All CoreRange tables come with radiused/rounded holes and 25mm thick steel as standard. By streamlining its features; moving to a 100mm side box height with additional ribbing underneath to maximise strength, a single row of side holes, ±0.2mm flatness, no edge scale, and matching them with a line of more economical, high-utility workshop accessories, we’ve made a ripper of a table setup that keeps your upfront cost down while still having the KOWT quality without ending up with poor quality junk.
CoreRange Packages, K28
This CoreMaxx+ package comes complete with a nitrided steel 2500mm x 1400mm table, adjustable legs and a whopping 112pc Maxx fixture tooling kit.
The KOWT K28 CoreRange is a functional, industrial setup engineered from the same manufacturing DNA as our K28 Signature Series. The CoreRange pairs a 25mm thick S355 steel plate with a 28mm hole system, plasma nitriding, and full K28 eco-system cross compatibility. All CoreRange tables come with radiused/rounded holes and 25mm thick steel as standard. By streamlining its features; moving to a 100mm side box height with additional ribbing underneath to maximise strength, a single row of side holes, ±0.2mm flatness, no edge scale, and matching them with a line of more economical, high-utility workshop accessories, we’ve made a ripper of a table setup that keeps your upfront cost down while still having the KOWT quality without ending up with poor quality junk.

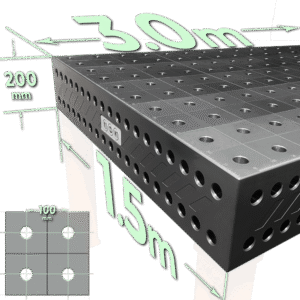

Table Tops
Our Cast Iron tables are made using high density sand resin casting, not your regular vacuum castings – We guarantee no pitting, porosity or other inclusions. Greater heat dispersion, and less flex meaning it’ll stay flatter, longer. They are grittier in surface, less scratch prone and more MIG spatter resistant over our steel tables.
All K28 tables feature certified tolerances and superior machining accuracy through several flatness and finishing stages. Each hole undergoes a meticulous four-step process with fine boring for smoother, more accurate cavities. Rounded holes, table corners and a 100mm x 50mm side grid come standard.
SIZE: 3000mm x 1500mm
MATERIAL: T300 Cast Iron – Slightly better suited for MIG.
TREATMENT: Nitriding – Rust + Spatter + Hardened.
TOP GRID: Standard – 4 Holes Per 100mm².
SCALE (mm): CNC Machine Engraved – All 4 corners.
